Variant coding

  1. Connect GDS to Data Link Connector(DLC).
  2. IG "ON"
  3. Using GDS, Perform Variant coding program. (Fig 1
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON
  6. Go to "COMPONENT INSPECTION " procedure.

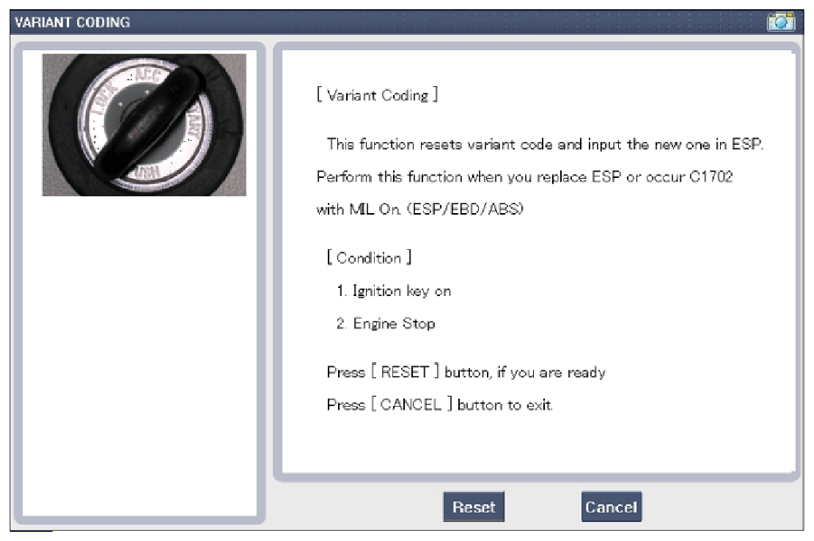

    Fig 1: Display - GDS Diagnostic Item (Variant Coding)
    G08314686Courtesy of KIA MOTORS AMERICA, INC.
