Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Smart Key
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

Fig 2: Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 3: Display - Smart Key Code Saving Screen
Courtesy of KIA MOTORS AMERICA, INC.
After inserting the teaching key, push "ENTER" key.
Input the "Pin code" for first key teaching.

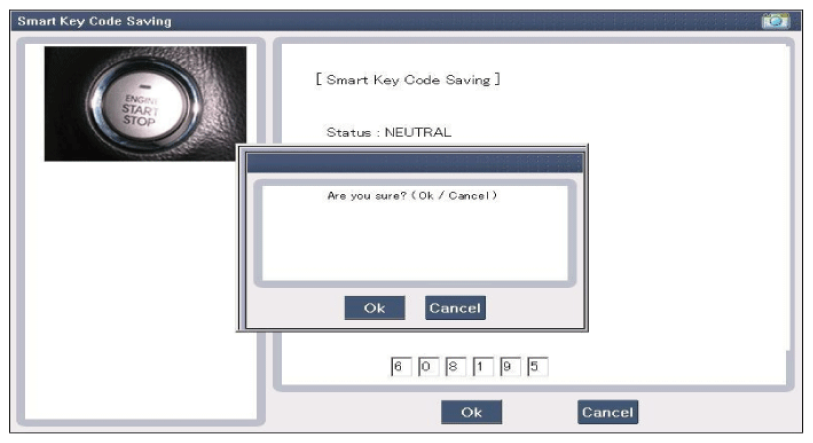

Fig 4: Display - Smart Key Code Saving Screen (With Input Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

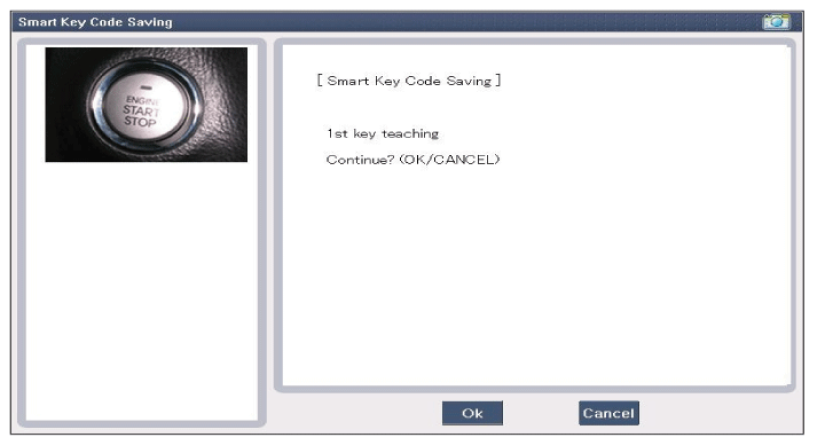

Fig 5: Display - Smart Key Code Saving Confirmation Message
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

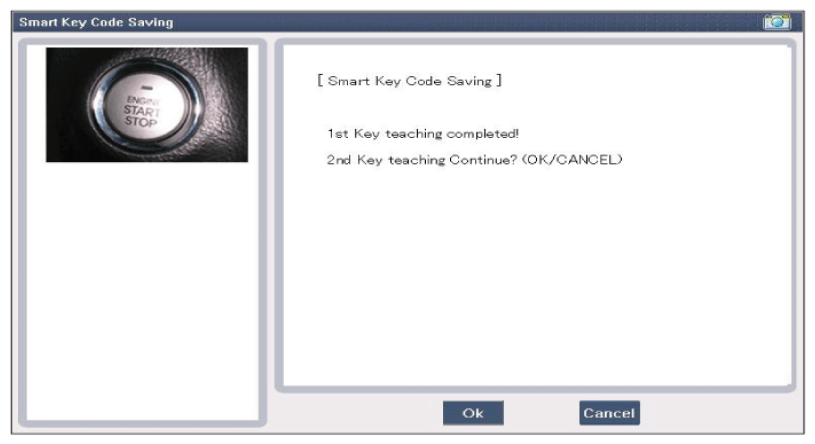

Fig 6: Display - Smart Key Code Saving Continue Confirmation Message
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Display - Smart Key Code Saving Test Completed Message (For 1st Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.

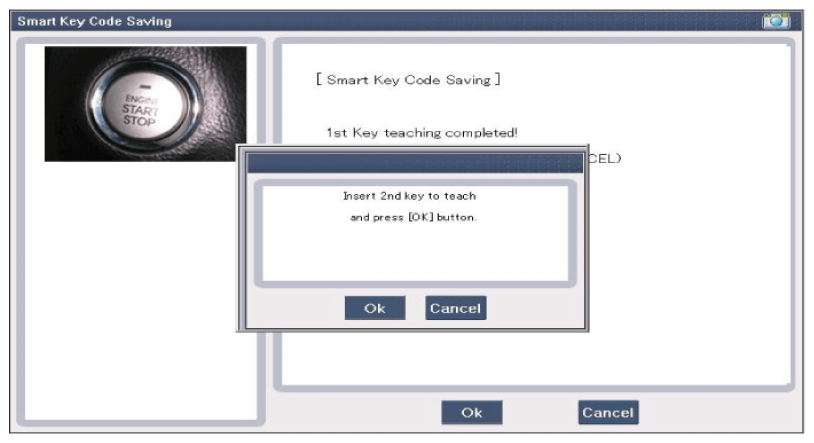

Input the "Pin code" for second key teaching.

Fig 8: Display - Smart Key Code Saving Continue Confirmation Message (For 2st Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Display - Smart Key Code Saving 2st Key Teaching Confirmation Message
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

Fig 10: Display - Smart Key Code Saving Test Confirmation Message
Courtesy of KIA MOTORS AMERICA, INC.

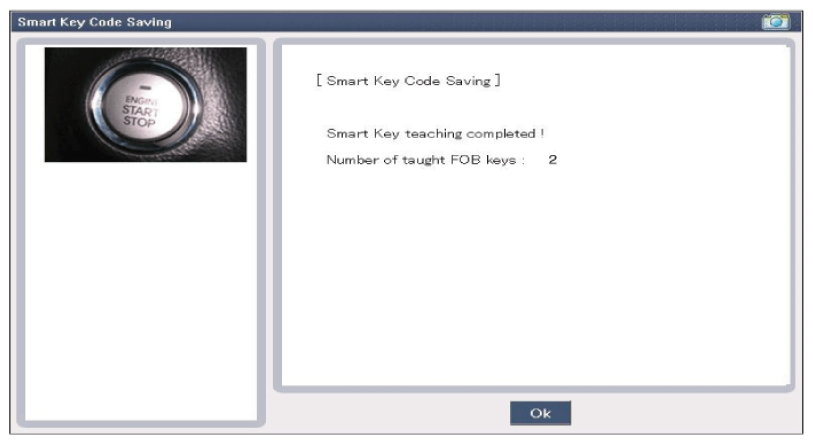

Then the screen will be shown as below when key teaching process is completed.
