Components and Components Location: Components

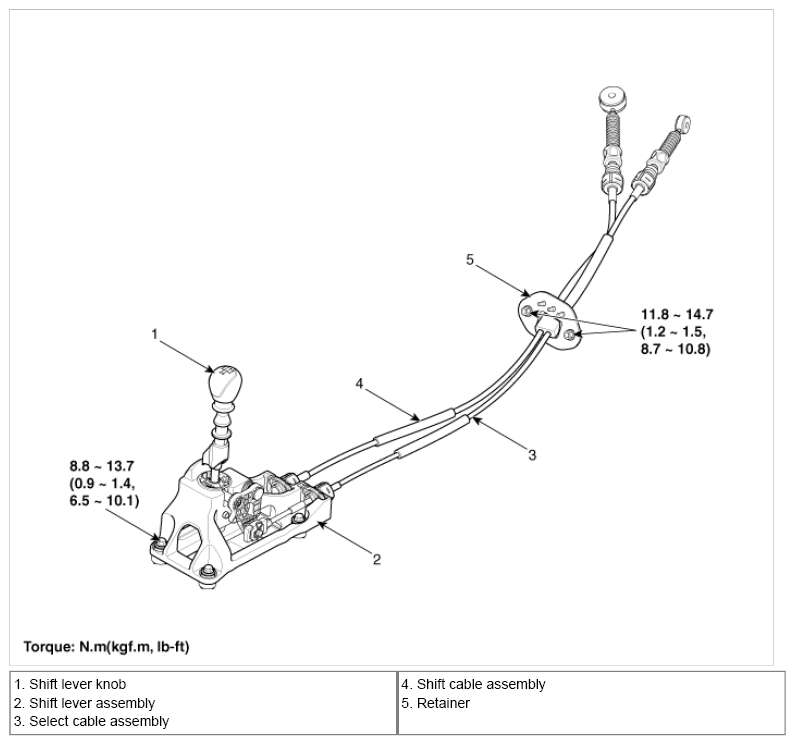

Fig 1: Shift Lever Components With Torque Specifications

G07369727

Courtesy of KIA MOTORS AMERICA, INC.
