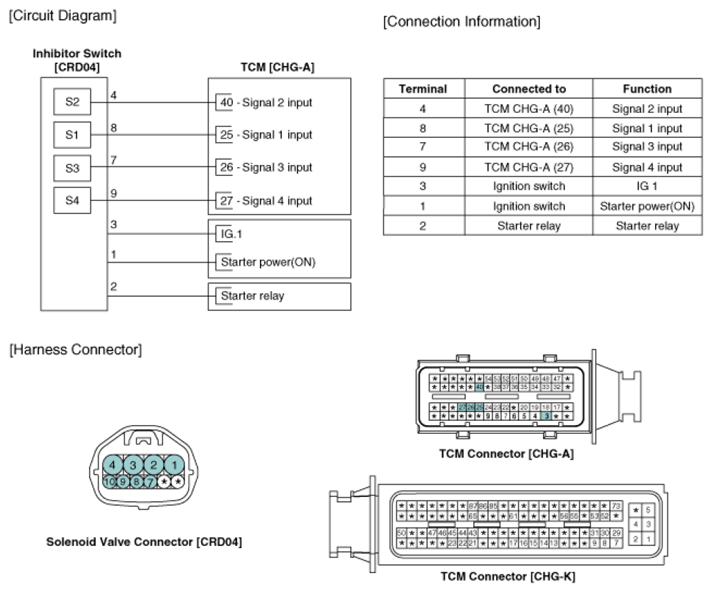

Home >> Kia >> 2012 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Inhibitor Switch >> Schematic Diagrams >> Circuit Diagram
