Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    For sedan, refer to LOWER PANEL REPLACEMENT . For coupe, refer to LOWER PANEL REPLACEMENT .

  3. Disconnect the power mosfet connector (A) at the connecting part between heater and blower unit.
  4. Remove the power mosfet (B) after loosening the mounting screws.

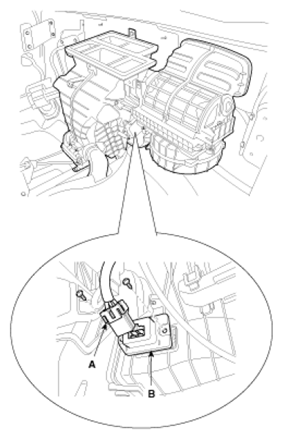

    Fig 1: Power Mosfet & Connector
    G07369637Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
