Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad.

    For coupe, refer to CRASH PAD . For sedan, refer to CRASH PAD .

  3. Disconnect the intake actuator connector.
  4. Loosen the mounting screw and then remove the intake actuator (B) from the blower unit.

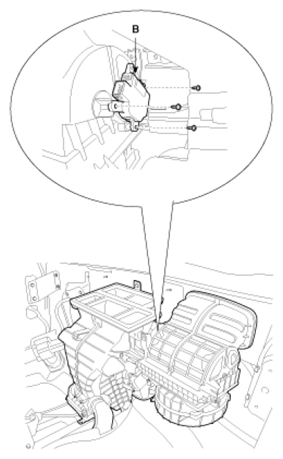

    Fig 1: Intake Actuator & Mounting Screws
    G07369644Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
