Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    For sedan, refer to LOWER PANEL REPLACEMENT . For coupe, refer to LOWER PANEL REPLACEMENT .

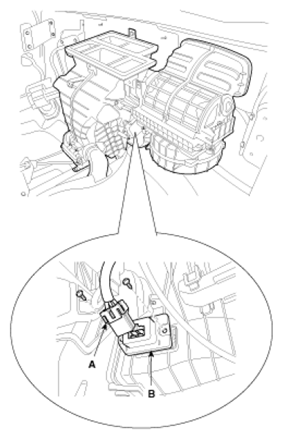

  3. Disconnect the connector (A) and then remove the blower resistor (B).
    Fig 1: Blower Resistor & Connector
    G07369639Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
