Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad

    For coupe, refer to CRASH PAD . For sedan, refer to CRASH PAD .

  3. Disconnect the connector (A) of the blower motor.
  4. Remove the blower motor (B) after loosening the mounting screws.

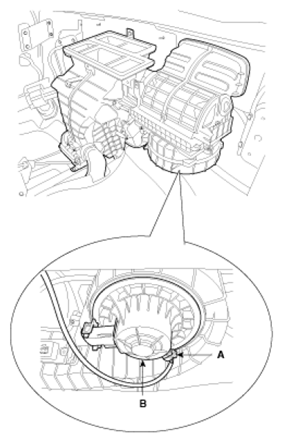

    Fig 1: Blower Motor & Connector
    G07369635Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
