Home >> Kia >> 2012 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Water pump >> Components and Components Location >> Components

Components and Components Location: Components

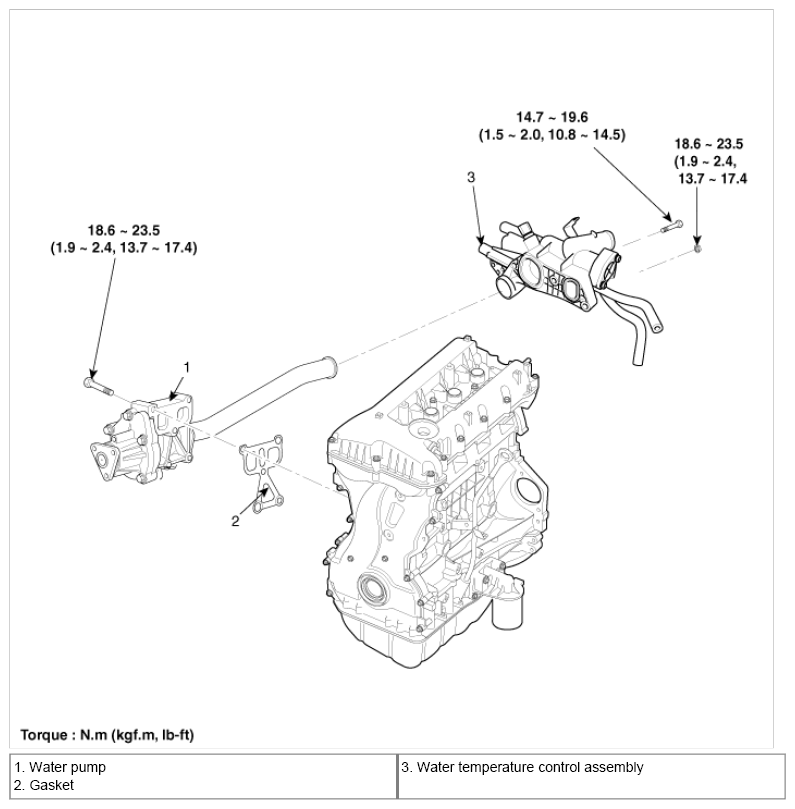

Fig 1: Water Pump Components With Torque Specifications

G07367599

Courtesy of KIA MOTORS AMERICA, INC.
