Component and Components Location: Component

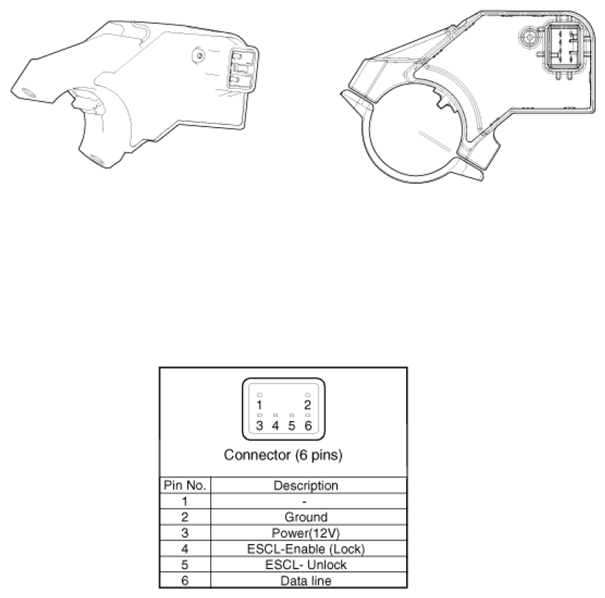

Fig 1: Electronic Steering Column Lock Connector Terminal Identification

G07369543

Courtesy of KIA MOTORS AMERICA, INC.
