Components and Components Location: Components

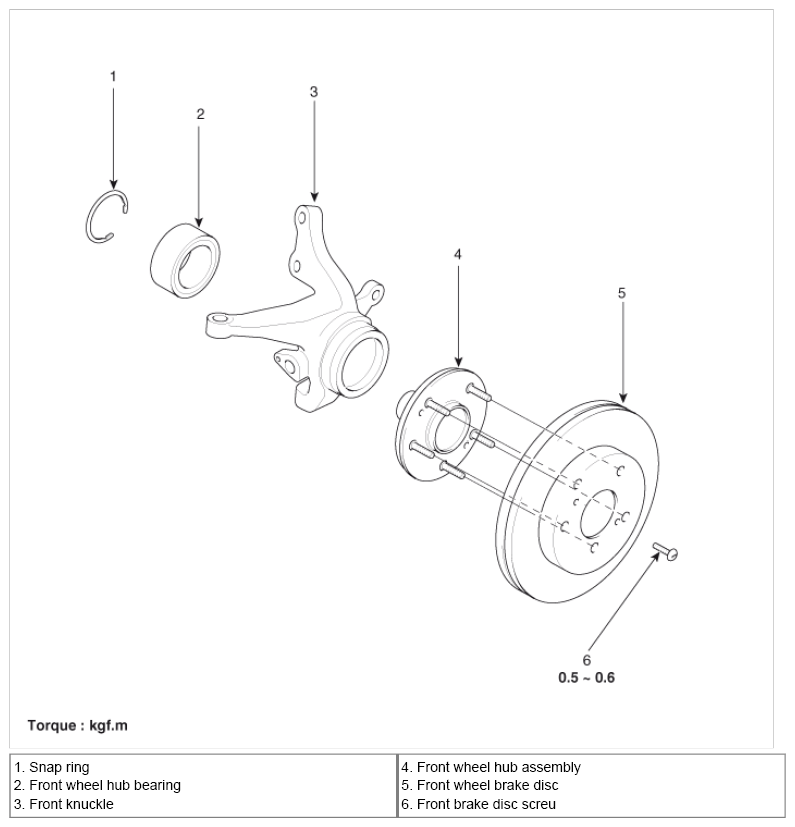

Fig 1: Front Axle Assembly Replacement Components With Torque Specifications

G07368061

Courtesy of KIA MOTORS AMERICA, INC.
