Home >> Kia >> 2012 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Front Driveshaft >> Components and Components Location >> Components

Components and Components Location: Components

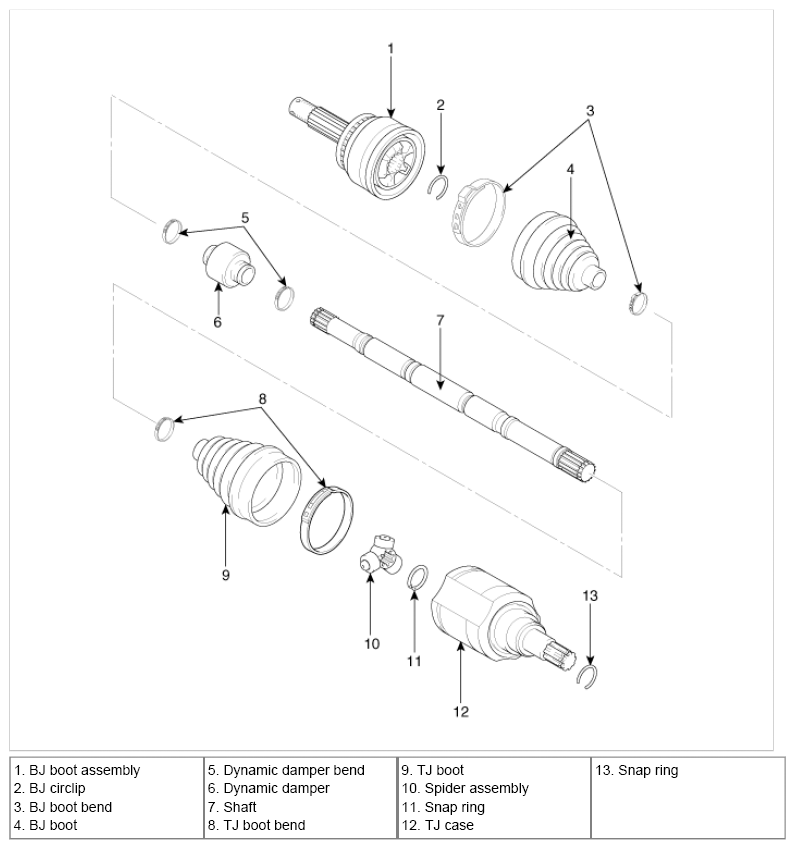

Fig 1: Exploded View Of Front Driveshaft

G07368075

Courtesy of KIA MOTORS AMERICA, INC.
