Home >> Kia >> 2012 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Electro Chromic Inside Rear View Mirror >> Components and Components Location >> Components

Components and Components Location: Components

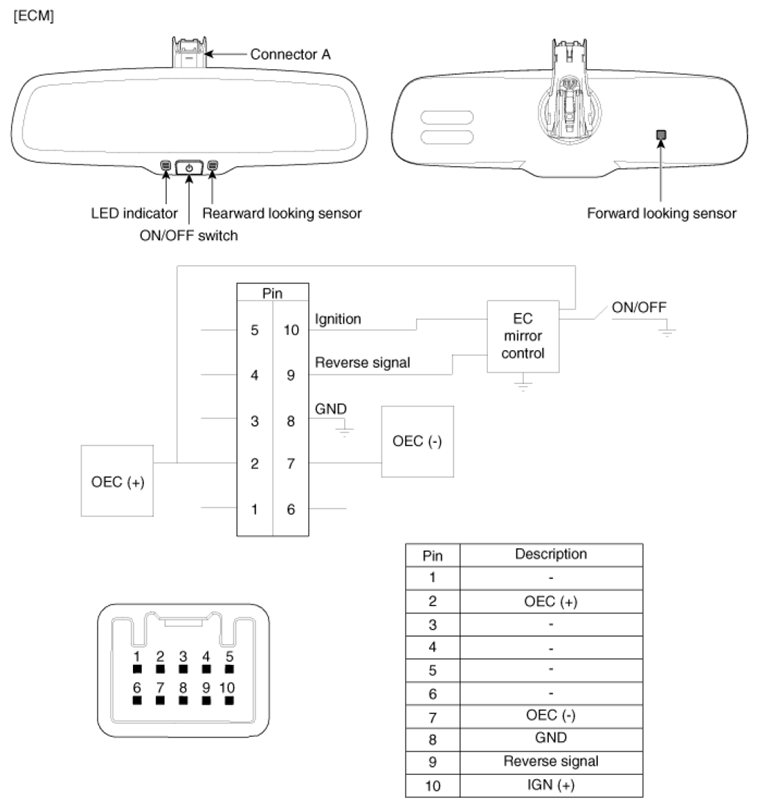

Fig 1: Electro Chromic Inside Rear View Mirror Components & Connector Terminal Identification
G07369386Courtesy of KIA MOTORS AMERICA, INC.

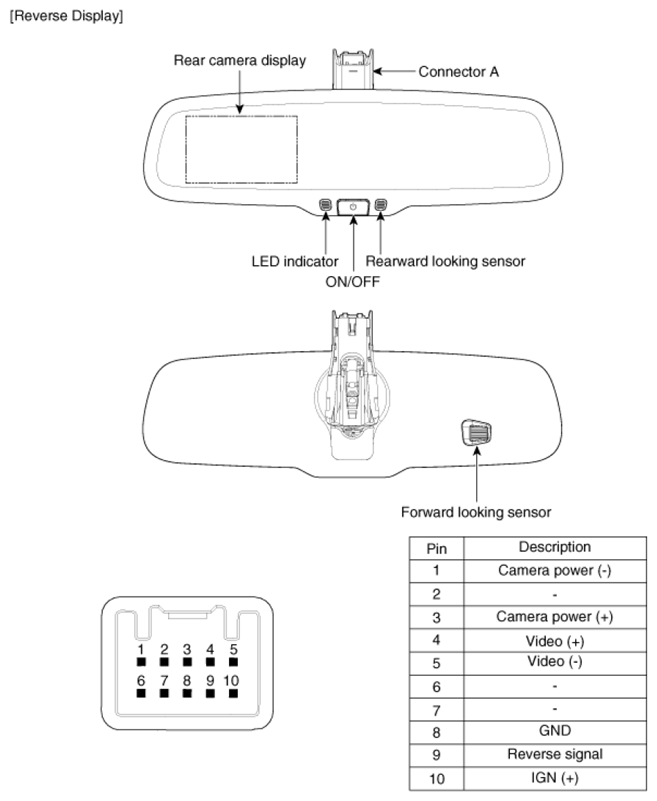

Fig 2: Electro Chromic Inside Rear View Mirror Components & Connector Terminal Identification (Reverse Display)
G07369387Courtesy of KIA MOTORS AMERICA, INC.
