Audio Assembly Replacement

  1. Remove the center fascia panel.
  2. Remove the mounting screws (4 EA) then remove the audio unit (A).

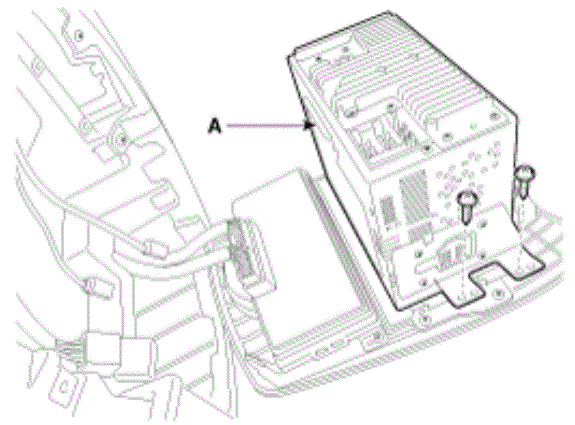

    Fig 1: Audio Assembly & Mounting Screws
    G00534434Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connectors (A).
  4. Installation is the reverse of removal.
