Audio System
>>
Troubleshooting
>>
Chart 1
Chart 1

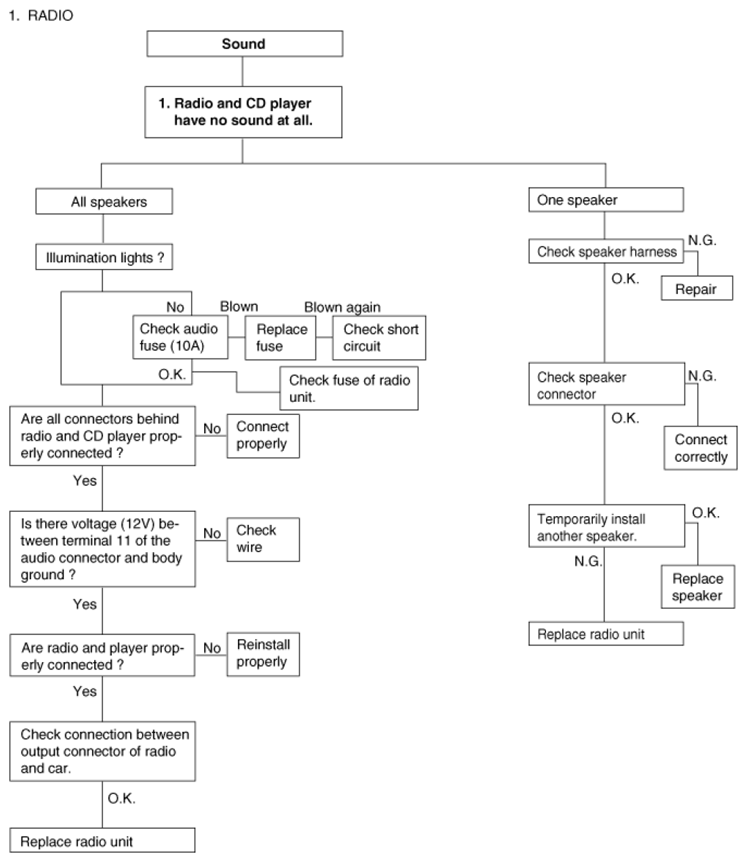

Fig 1: Customer Complaint Troubleshooting Flow Chart 1 (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

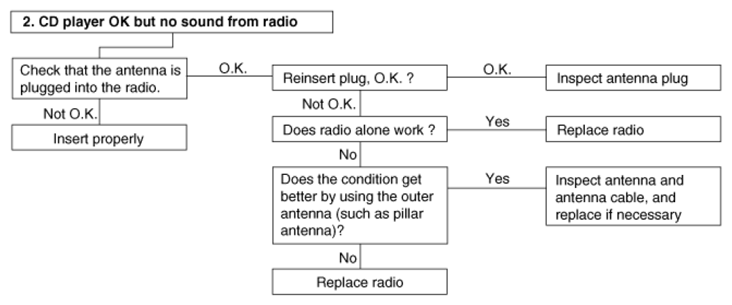

Fig 2: Customer Complaint Troubleshooting Flow Chart 1 (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

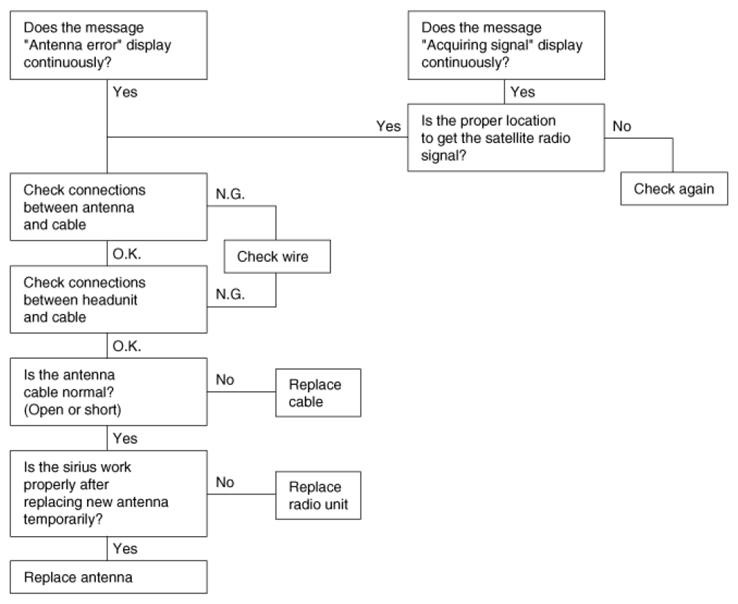

Fig 3: Customer Complaint Troubleshooting Flow Chart 1 (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Customer Complaint Troubleshooting Flow Chart 1 (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
