Components and Components Location: Components

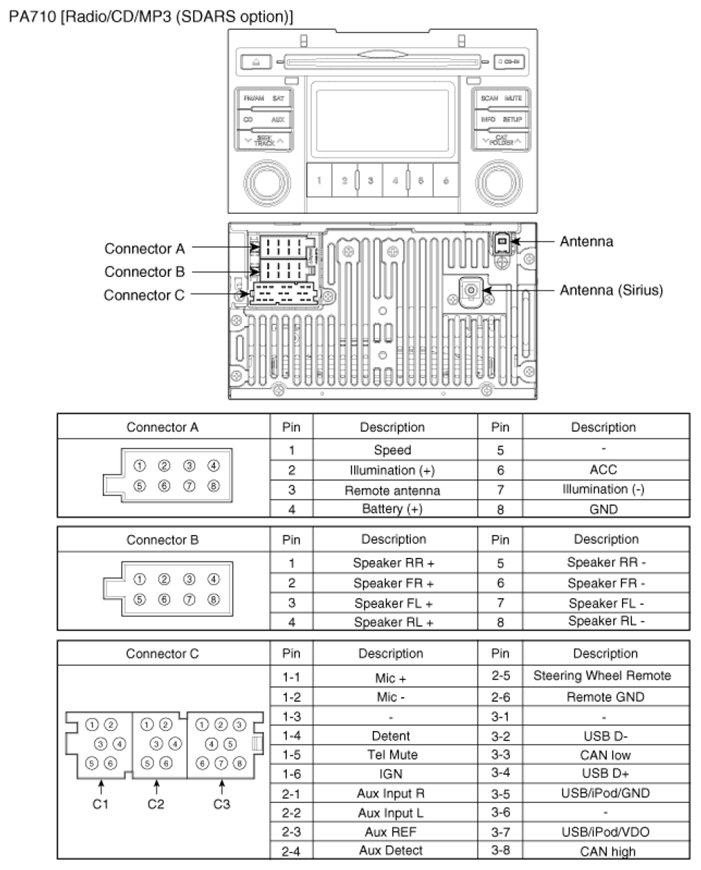

Fig 1: Audio Unit Connector Terminal Identification (PA710)
G07368987Courtesy of KIA MOTORS AMERICA, INC.

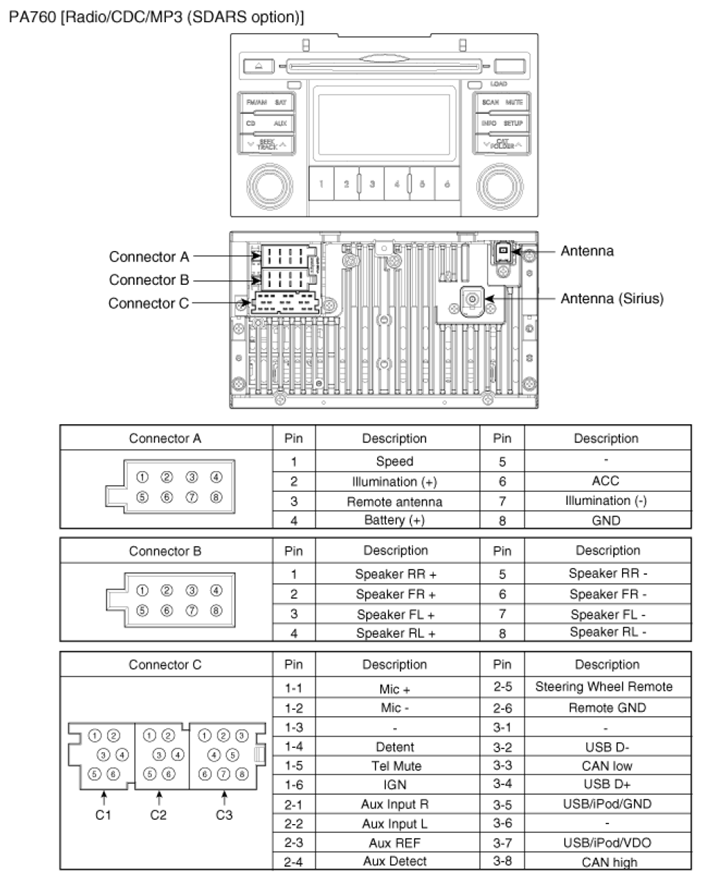

Fig 2: Audio Unit Connector Terminal Identification (PA760)
G07368988Courtesy of KIA MOTORS AMERICA, INC.
