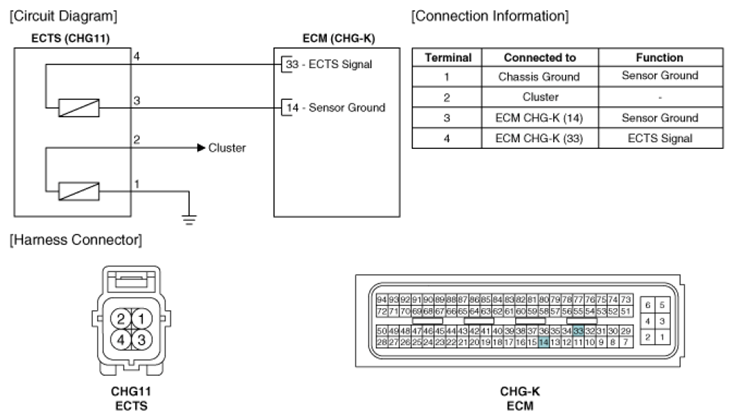

Home >> Kia >> 2012 >> Forte Koup EX, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Engine Coolant Temperature Sensor (ECTS) >> Schematic Diagrams >> Circuit Diagram
