Monitor Scantool Data

  1. Check status.
    1. IGN "ON" & Engine "OFF".
    2. Monitor the "ECM, Key and Smartra Status" Parameter on the Scantool.

      Specification :  'LEARNT'

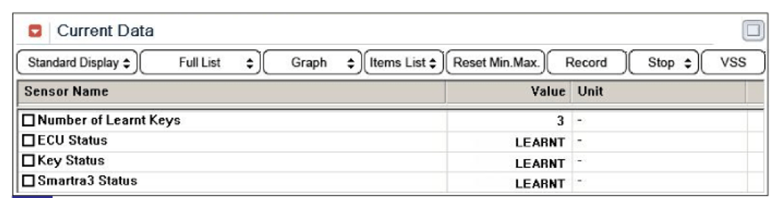

      Fig 1: Screen Display - Current Data
      G07371268Courtesy of KIA MOTORS AMERICA, INC.

      3. The data in Fig 1 shows that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.

    3. Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter within specifications?

      YES

      • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration damage on the ECM or SMARTRA. And This DTC has not erased in previous repair. Repair or reply as necessary and then go to VERIFICATION OF VEHICLE REPAIR  procedure.

      NO
