Home >> Kia >> 2011 >> Soul Base >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch System >> Clutch Master Cylinder >> Components And Component Locations >> Components

Components And Component Locations: Components

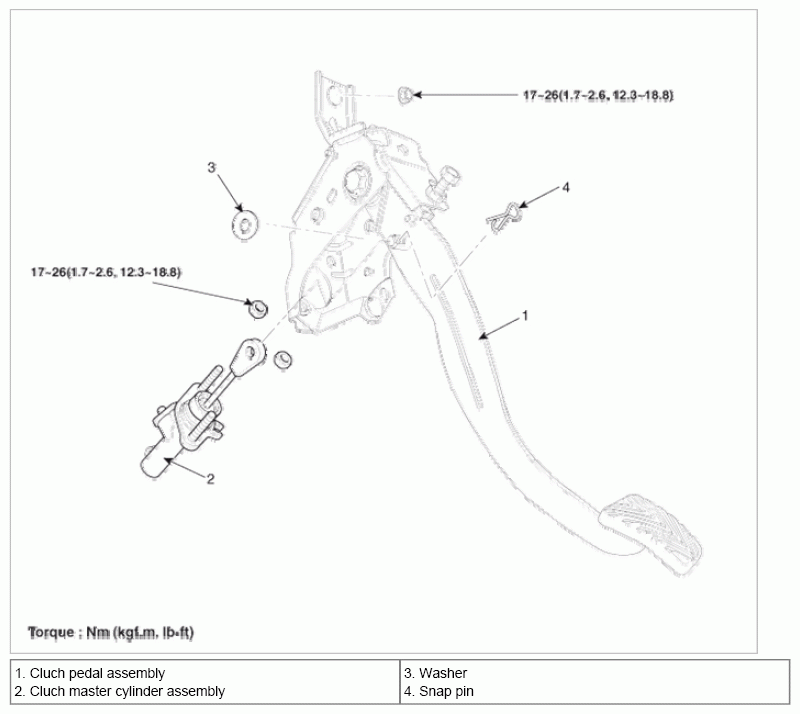

Fig 1: Clutch Master Cylinder Replacement Components With Torque Specifications

G06523517

Courtesy of KIA MOTORS AMERICA, INC.
