Home >> Kia >> 2011 >> Soul Base >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch System >> Clutch Cover And Disc >> Components And Component Locations >> Components

Components And Component Locations: Components

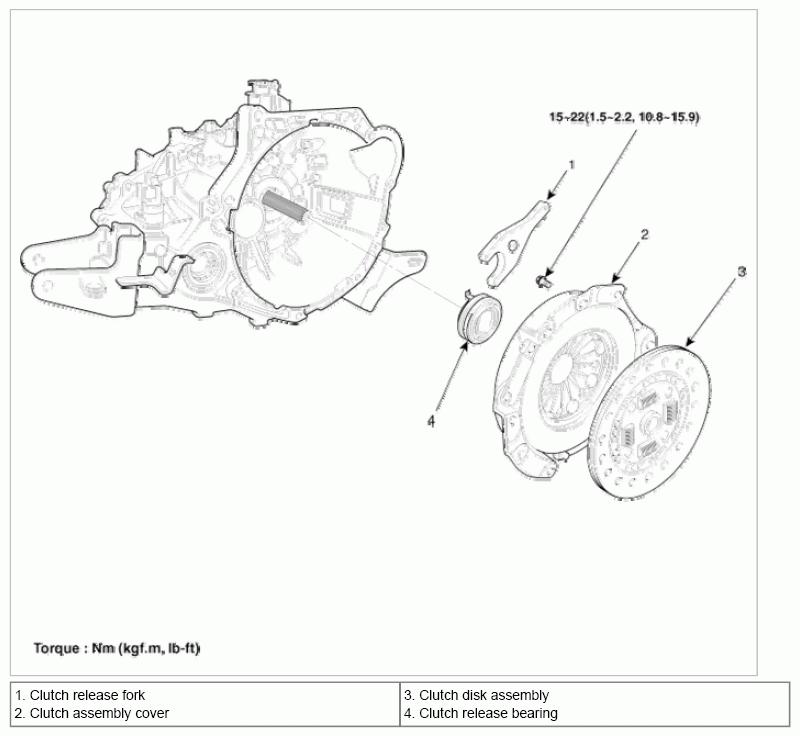

Fig 1: Clutch Cover & Disc Replacement Components With Torque Specifications

G06523511

Courtesy of KIA MOTORS AMERICA, INC.
