Components And Component Locations: Components

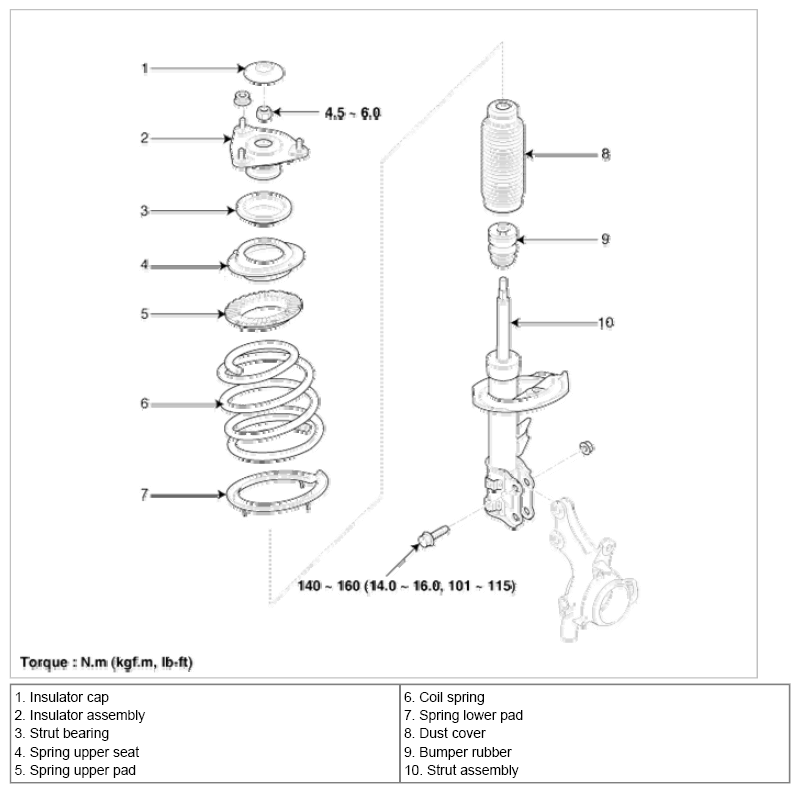

Fig 1: Exploded View Of Front Strut Assembly With Torque Specifications

G06523698

Courtesy of KIA MOTORS AMERICA, INC.
