Parking System

WARNING: This page is about a different variant/trim than selected.

The parking system for A4CF2 model is the cam type.

The roller type installed to the existing new generation AT needs support to move the roller when operating the parking system.

The cam type for A4CF2 model doesn't need the support and the structure is simpler. It only needs the guide to prevent from moving the cam idly.

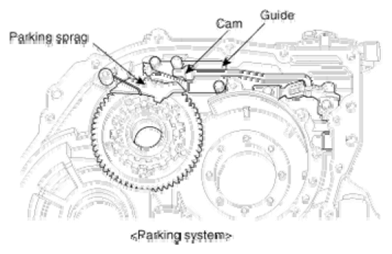

Fig 1: Identifying Parking System Components
G06523546Courtesy of KIA MOTORS AMERICA, INC.
