Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

Remove the fuse box cover.
Remove the starter relay (A).

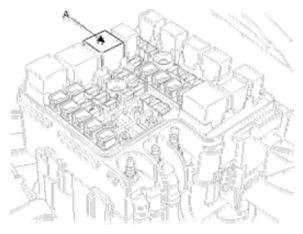

Fig 1: Identifying Starter Relay
Courtesy of KIA MOTORS AMERICA, INC.

Using an ohmmeter, check that there is continuity between each terminal.

CONTINUITY REFERENCE

Terminal	Continuity
30 - 87	NO
85 - 86	YES

Apply 12V to terminal 85 and ground to terminal 86.
Check for continuity between terminals 30 and 87.

Fig 2: Starter Relay Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
If there is no continuity, replace the starter relay.
Install the starter relay.
Install the fuse box cover.
