Monitor Scantool Data

  1. Connect scantool to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "ISCA" parameters on the scantool.

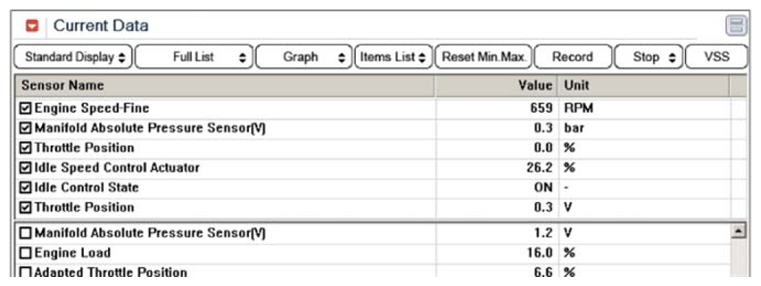

    Fig 1: Monitoring ISCA Parameters On Scantool
    G06522999Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    Fault is intermittent, caused by poor contact in the sensor's and/or ECM's connector, or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
