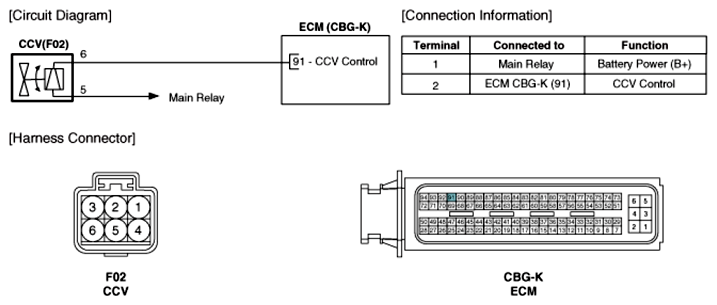

Home >> Kia >> 2011 >> Soul Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Canister Close Valve (CCV) >> Schematic Diagrams >> Circuit Diagram
