Components Location
Components Location
1.6 DOHC

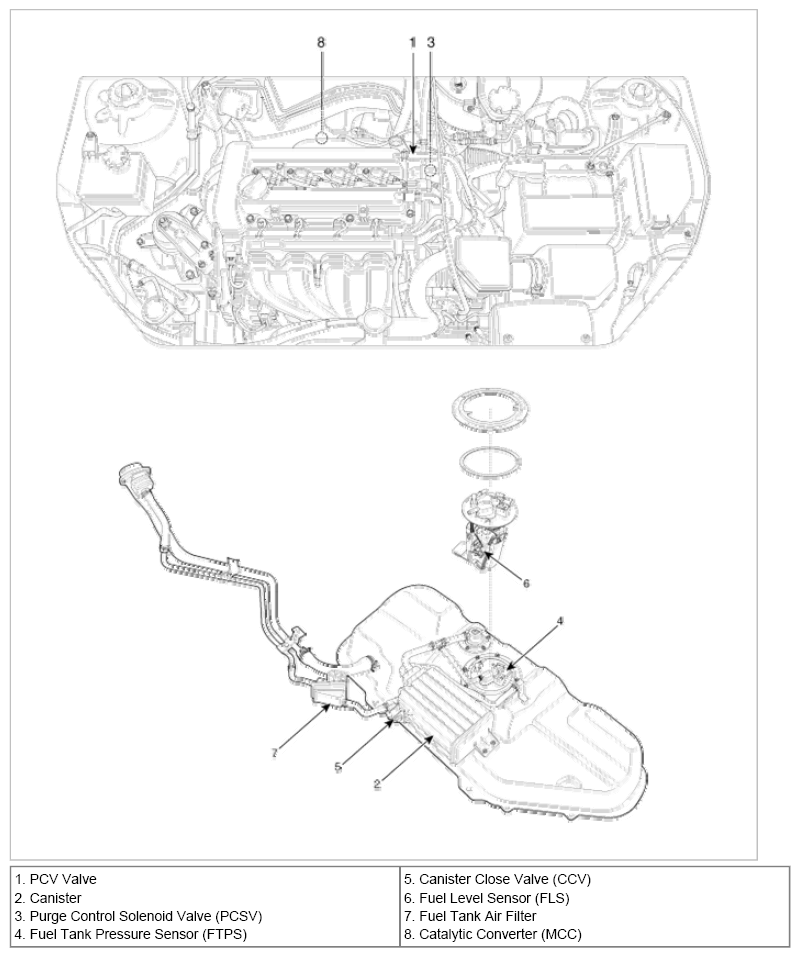

Fig 1: Emission Control System Components - 1.6L (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

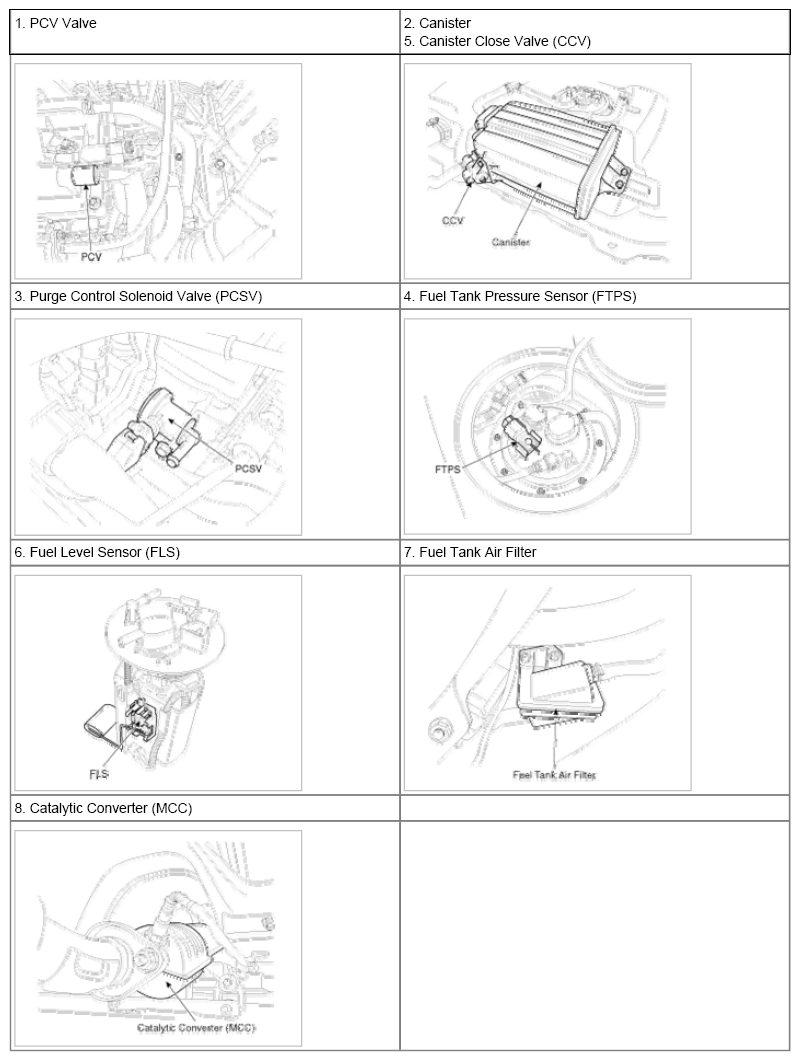

Fig 2: Emission Control System Components - 1.6L (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
2.0 DOHC

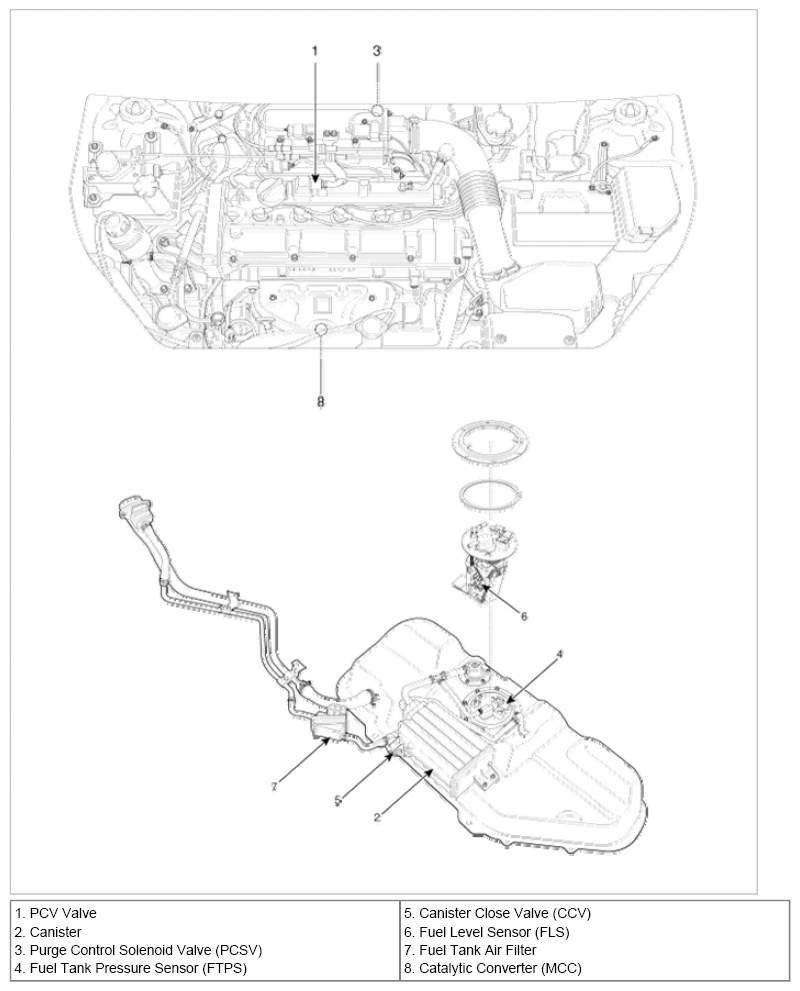

Fig 3: Emission Control System Components - 2.0L (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

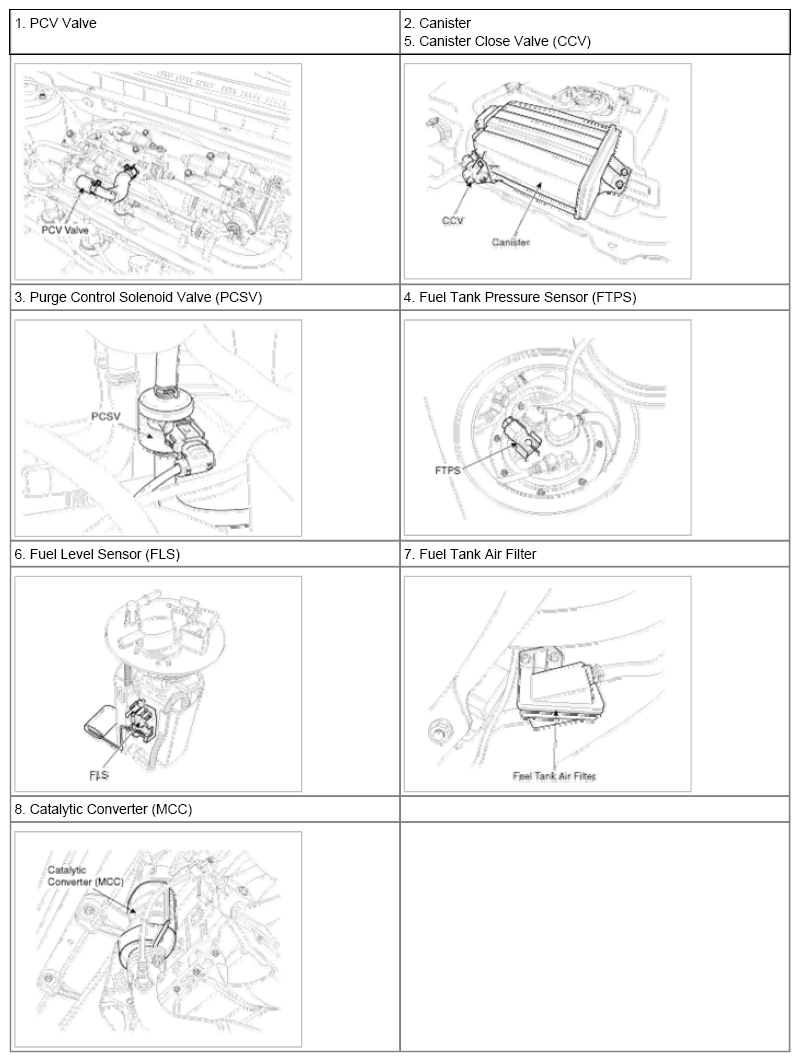

Fig 4: Emission Control System Components - 2.0L (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
