Repair Procedures: Replacement: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the following items:
    1. Front pillar trim, both sides.
    2. Windshield wiper arms and cowl cover (Refer to FRONT WIPER MOTOR ).
    3. Inside rear view mirror.
  2. Remove the front pillar garnish (C).
  3. Remove the windshield glass upper molding (A). Remove the spacer.

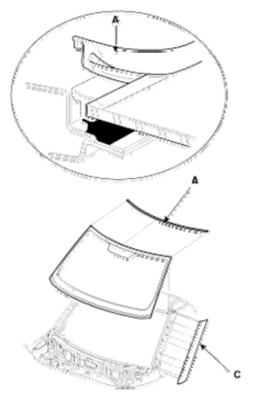

    Fig 1: Identifying Windshield Glass Upper Molding & Front Pillar Garnish
    G06525199Courtesy of KIA MOTORS AMERICA, INC.
  4. Cut out the windshield sealant using the sealant cutting tool (A) (09861-31100).

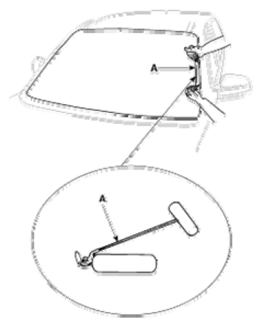

    Fig 2: Cutting Out Windshield Sealant Using Sealant Cutting Tool
    G06525200Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the windshield (A) carefully using the glass holder (B).
    Fig 3: Removing Windshield Using Glass Holder
    G06525201Courtesy of KIA MOTORS AMERICA, INC.
