Components And Component Locations: Components

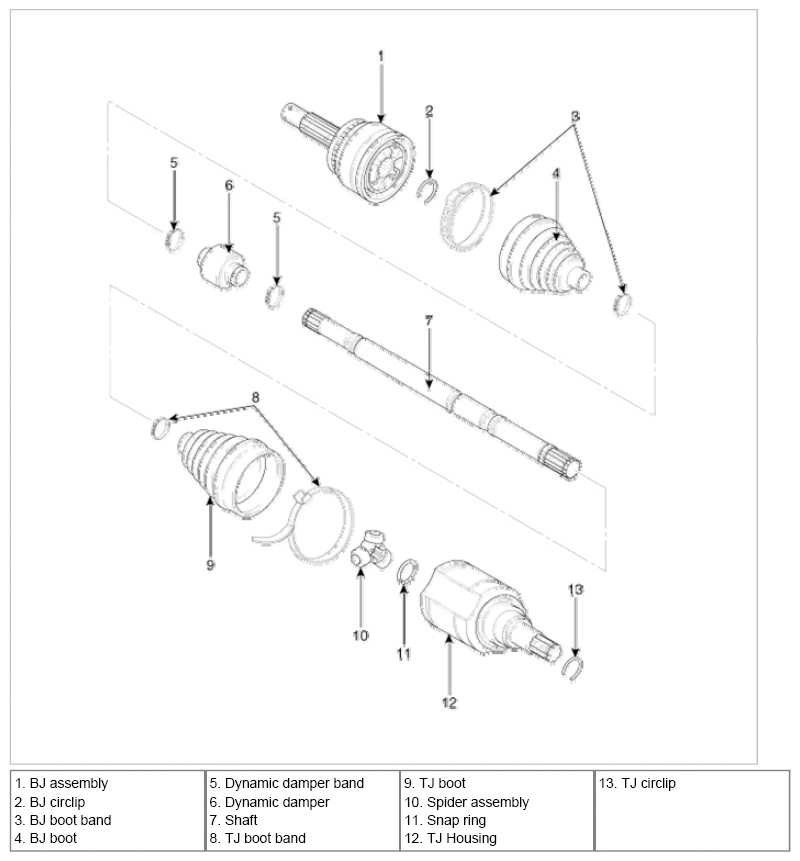

Fig 1: Exploded View Of Front Driveshaft

G06523665

Courtesy of KIA MOTORS AMERICA, INC.
