Check The Ground Circuit

  1. Disconnect the connector from the ABS control module.
  2. Check for continuity between terminals 13, 38 of the ABS control module harness side connector and ground point.
  3. Is there continuity?

    YES

    • Check the wheel speed sensor circuit.

    NO

    • Repair an open in the wire and ground point.

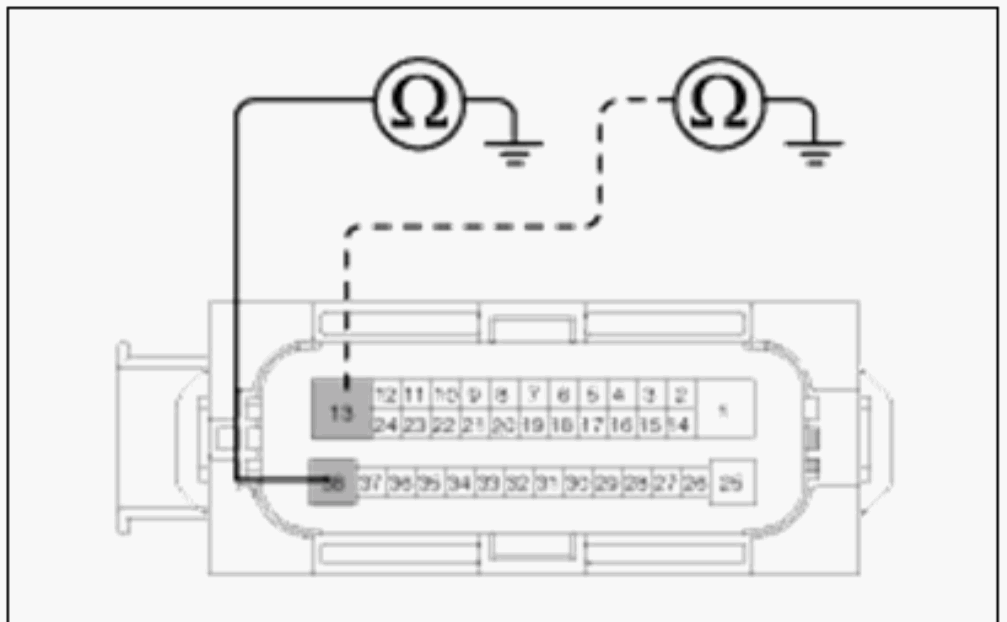

      • Fig 1: Checking Continuity Between Terminals 13, 38 Of ABS Control Module Harness Side Connector & Ground
      G00522402Courtesy of KIA MOTORS AMERICA, INC.
