Components and Component Locations: Components

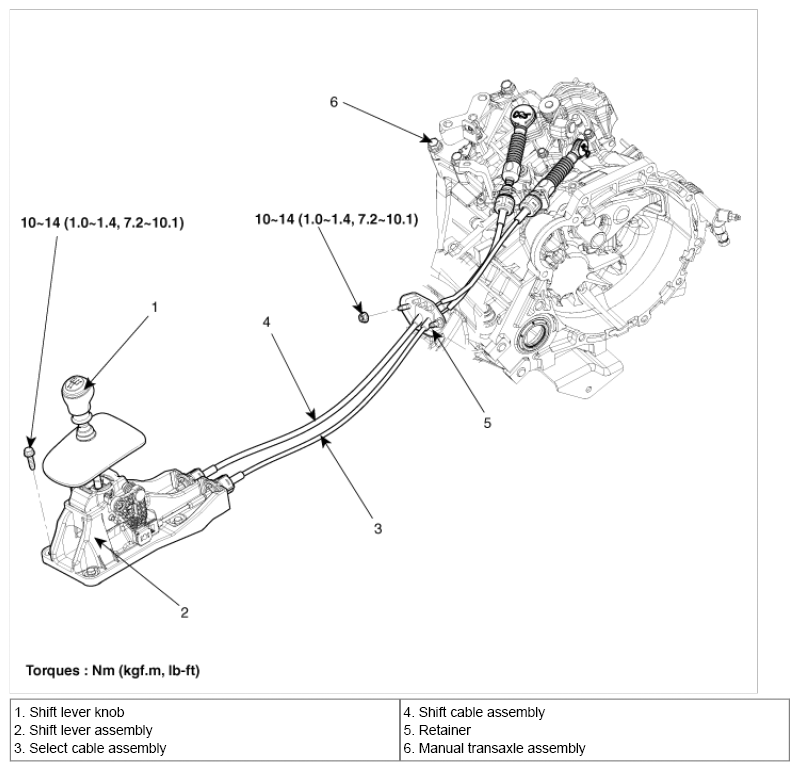

Fig 1: Shift Lever Replacement Components With Torque Specifications

G06526262

Courtesy of KIA MOTORS AMERICA, INC.
