Radio/CDC/MP3/External Amplifier Audio Unit Connector End Views
Radio/CDC/MP3/External Amplifier Audio Unit Connector End Views

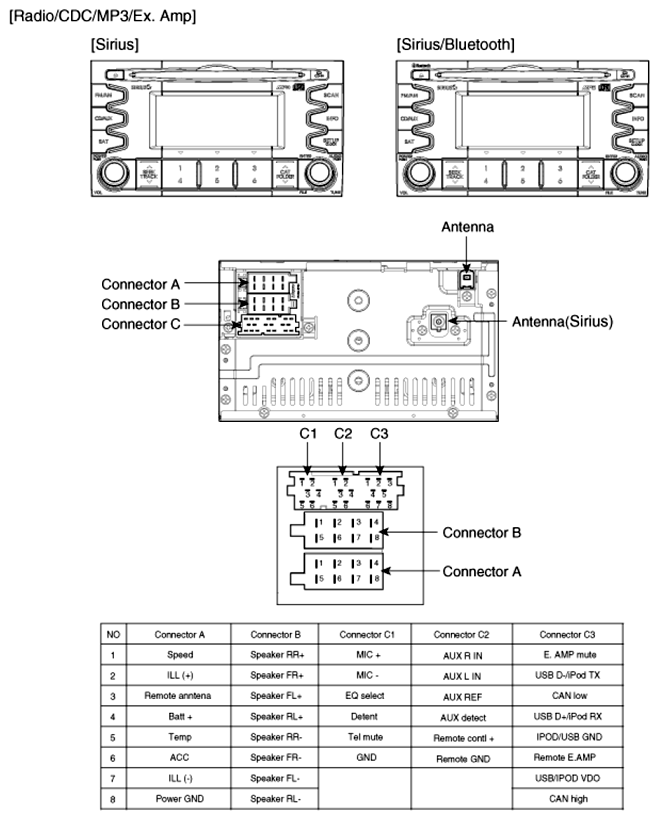

Fig 1: Radio/CDC/MP3/External Amplifier Audio Unit Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
