Radio/CD/MP3 Audio Unit Connector End Views

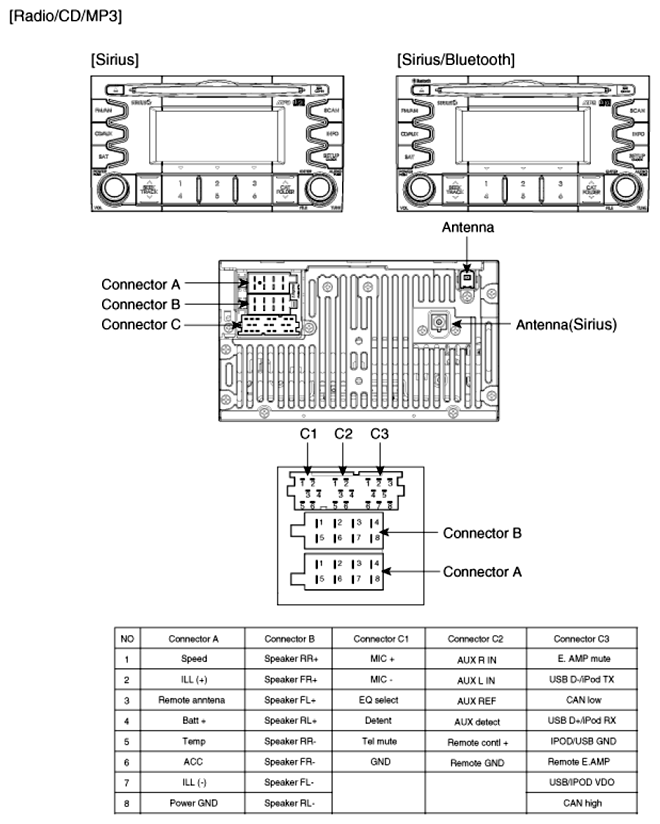

Fig 1: Radio/CD/MP3 Audio Unit Connector End Views

G06525270

Courtesy of KIA MOTORS AMERICA, INC.
