Multifunction Switch Connector End Views

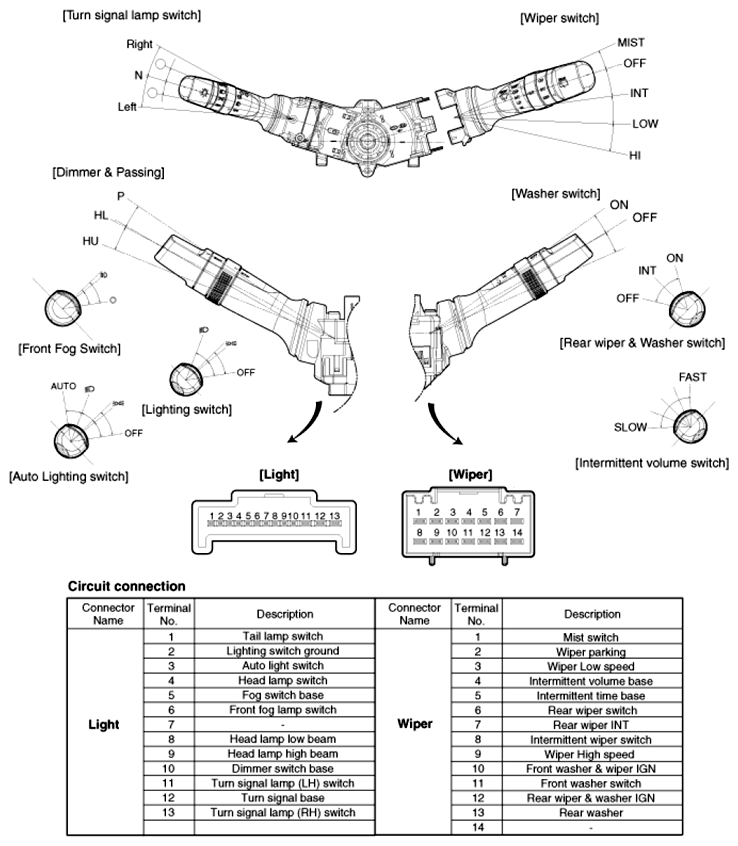

Fig 1: Multifunction Switch Connector End Views

G06525326

Courtesy of KIA MOTORS AMERICA, INC.
