Signal Waveform & Data

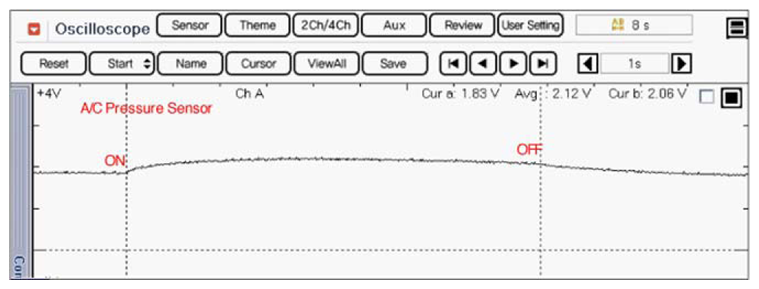

Fig 1: Scantool Display - Signal Waveform Of A/C Pressure Sensor
G06523015Courtesy of KIA MOTORS AMERICA, INC.

Normal waveforms of A/C pressure sensor during the time from turning on A/C switch to turning off A/C switch.
