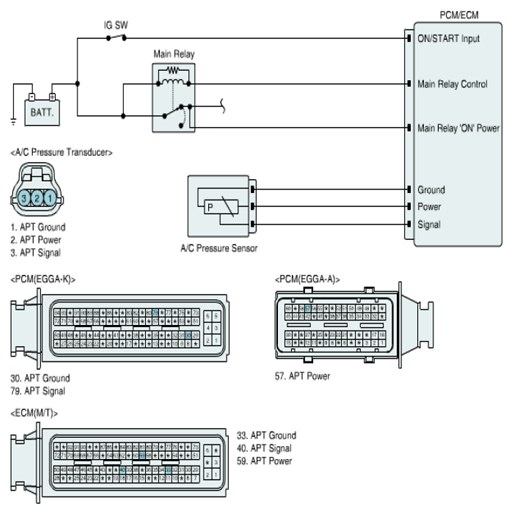

Home >> Kia >> 2011 >> Soul Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) - 1.6L >> DTC P0532: A/C Refrigerant Pressure Sensor A Circuit Low Input >> General Information >> Diagnostic Circuit Diagram
