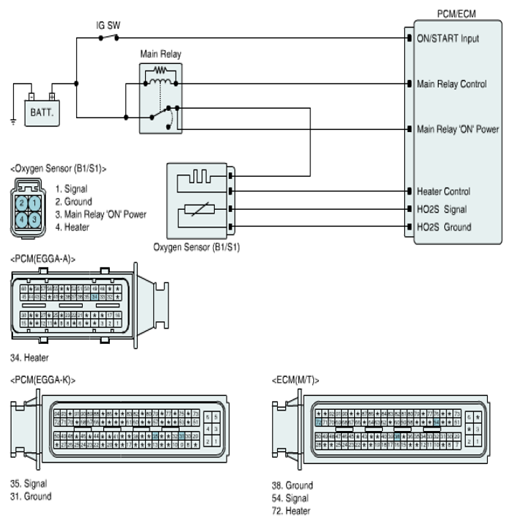

Home >> Kia >> 2011 >> Soul Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) - 1.6L >> DTC P0134: O2 Sensor Circuit No Activity Detected (Bank 1/Sensor 1) >> General Information >> Diagnostic Circuit Diagram
