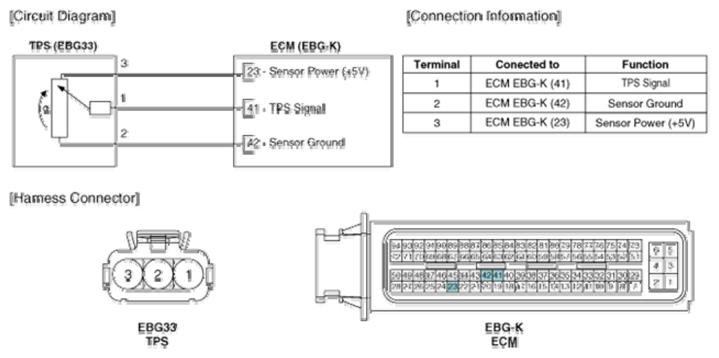

Home >> Kia >> 2011 >> Soul +, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Throttle Position Sensor (TPS) >> Schematic Diagrams >> Circuit Diagram
