Description And Operation (A4CF2): Description

INHIBITOR SWITCH DESCRIPTION

Sensor type	Type: ROTARY Available temperature range: -40~150°C (-40~320°F) Tightening torque: 10~12 Nm (1.0~1.2kgf.m, 7~8 lb-ft)
Function	Detect the position of select lever through the contact switch. It makes starting possible in "P" and "N".

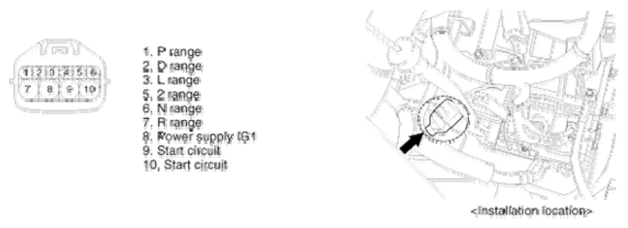

Fig 1: Inhibitor Switch Location & Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.

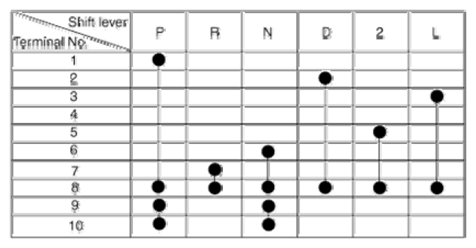

Fig 2: Shift Lever Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
