Home >> Kia >> 2011 >> Soul !, Standard >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 2.0L >> Shift Lever >> Components and Component Locations >> Components

Components and Component Locations: Components

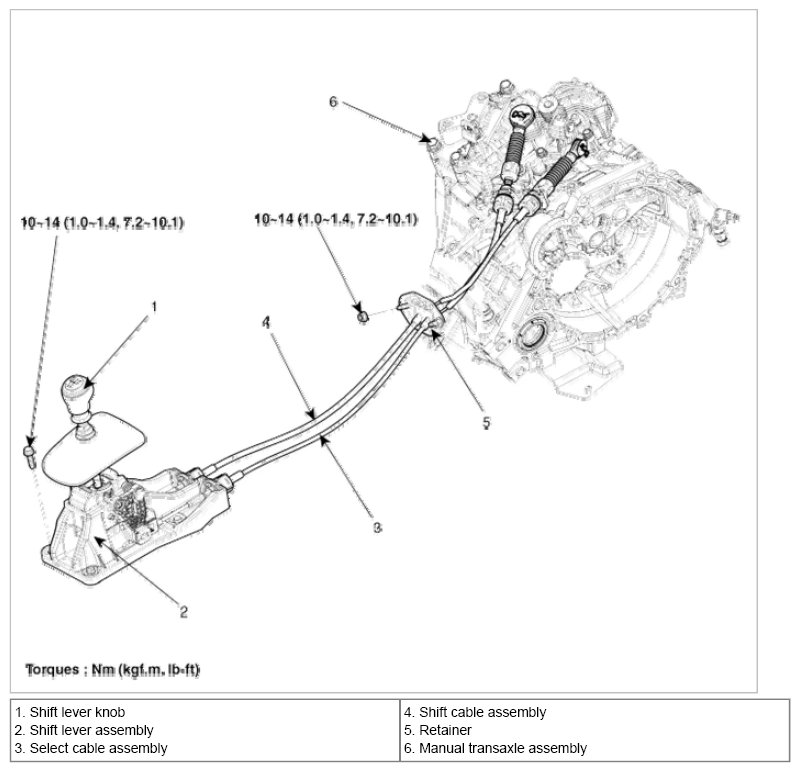

Fig 1: Shift Lever Replacement Components With Torque Specifications

G06524449

Courtesy of KIA MOTORS AMERICA, INC.
