Home >> Kia >> 2011 >> Soul !, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul - A4CF2 >> Valve Body System >> Valve Body >> Components and Components Location >> Components(2)

Components and Components Location: Components(2)

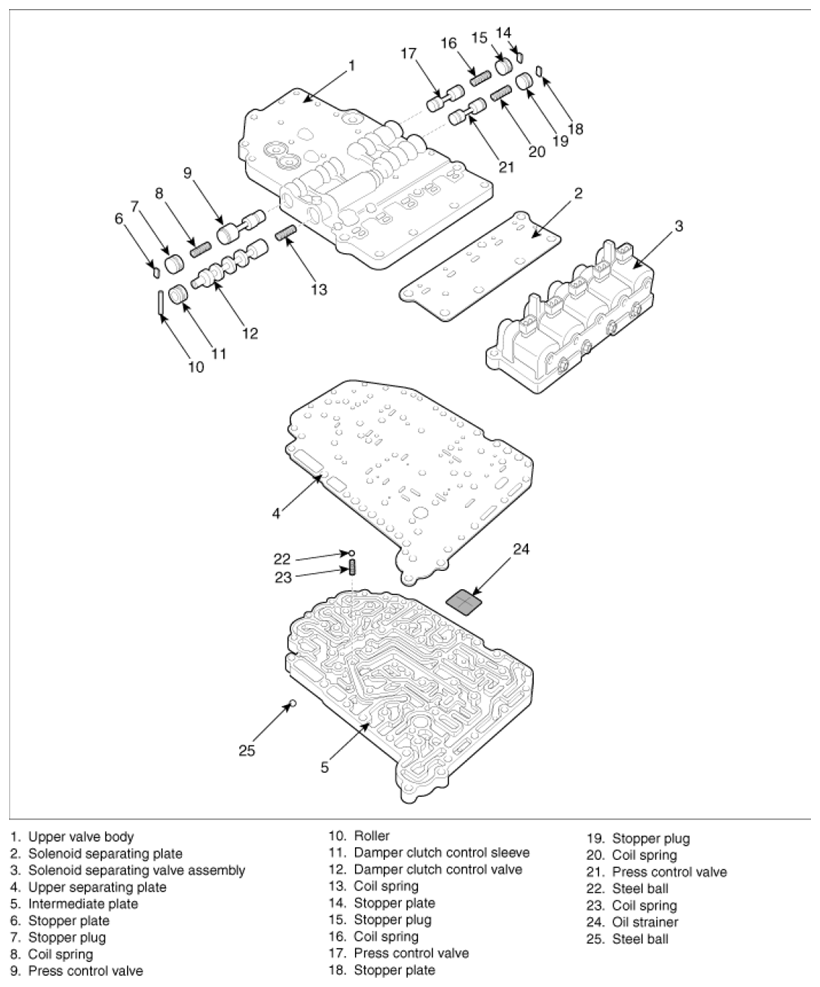

Fig 1: Identifying Valve Body Components And Components Location

G06798886

Courtesy of KIA MOTORS AMERICA, INC.
