Repair procedures: Installation

Installation is the reverse of removal.
CAUTION:
After replacement or reinstallation procedure of the automatic transaxle system, must perform procedures below.
- Power steering fluid replacement and air bleeding (Refer to POWER STEERING SYSTEM - GENERAL INFORMATION in ST group.)
- Adding automatic transaxle fluid. (Refer to SERVICE ADJUSTMENT PROCEDURE in this group.)
NOTE:
- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.
[Condition]
- IG Key On
- Transaxle Range: P
- Vehicle Speed :0 km/h
- Engine Off

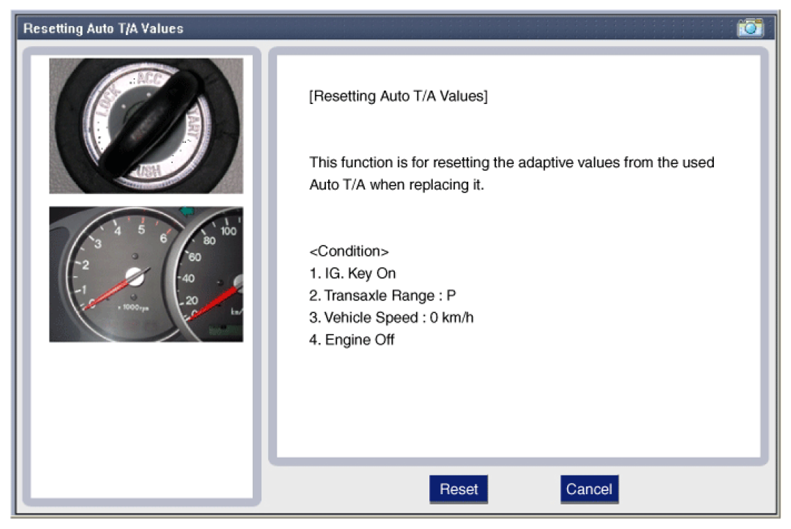

Fig 1: GDS Screen Display - Resetting Automatic Transaxle Values Procedure (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

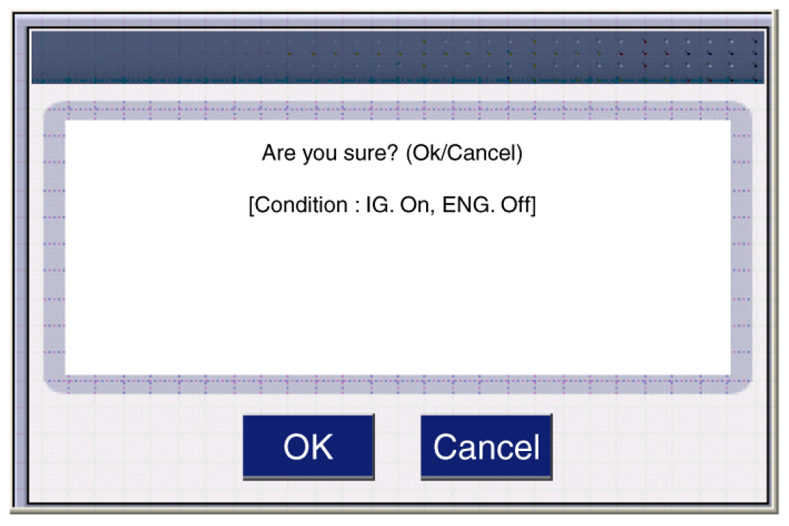

Fig 2: GDS Screen Display - Resetting Automatic Transaxle Values Procedure (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

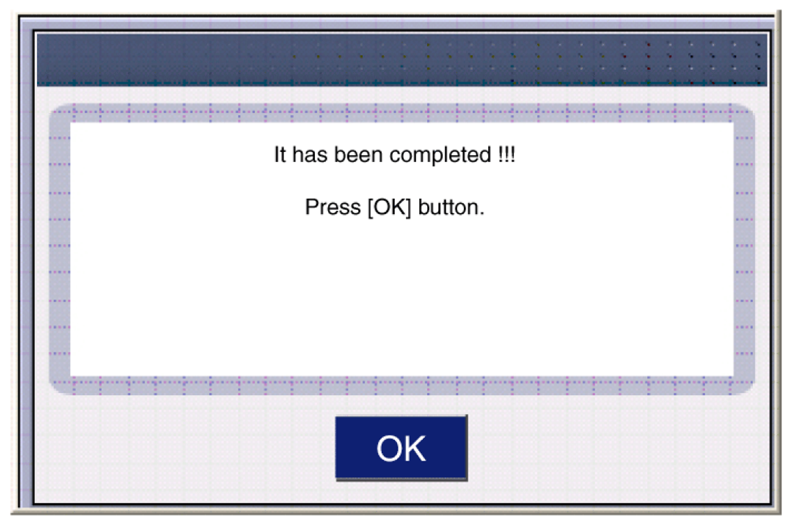

Fig 3: GDS Screen Display - Resetting Automatic Transaxle Values Procedure (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
