Components (2)

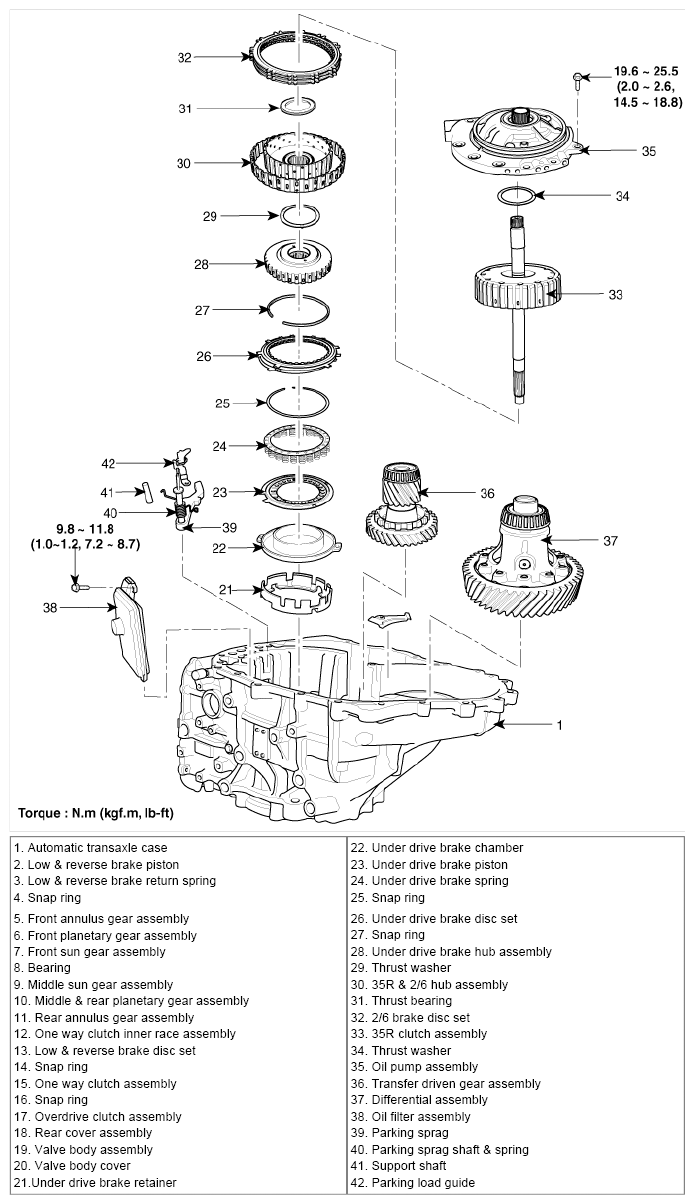

Fig 1: Identifying Automatic Transaxle Components And Components Location (2 Of 2)
G07676025Courtesy of KIA MOTORS AMERICA, INC.
