Automatic Transaxle System - 3.5L
>>
Automatic Transaxle
>>
Components and Components Location
>>
Components (1)
Components (1)

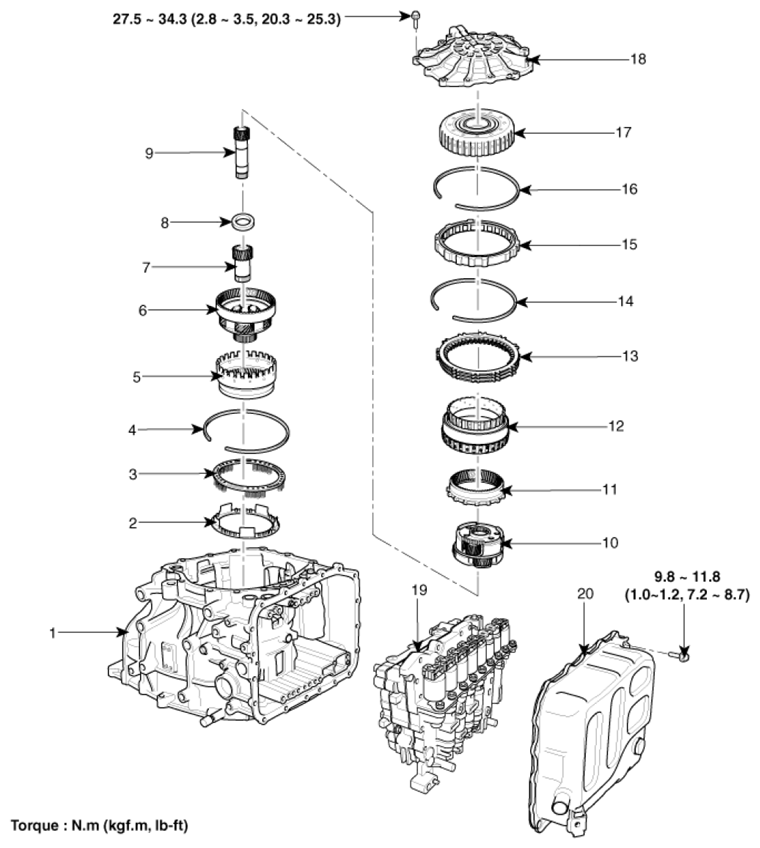

Fig 1: Identifying Automatic Transaxle Components And Components Location (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
