Back Up Lamp Switch Inspection

  1. Disconnect the back up lamp switch connector (A).

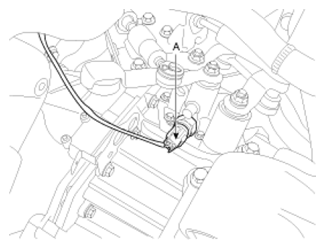

    Fig 1: Identifying Back Up Lamp Switch Connector
    G07419724Courtesy of KIA MOTORS AMERICA, INC.
  2. Inspect the continuity of the switch. When the shift lever is in reverse range, it should have continuity.
  3. Replace the back up lamp switch, if necessary.

    Tightening torque :

    29.4~34.4 N.m (3.0~3.5Kgf.m, 21.7~25.3lb-ft)
