Section 16 (Charging System - 3.5L): Alternator: Replacement

WARNING: This page is about a different variant/trim than selected.

Disconnect the terminals from the battery.
Disconnect negative battery terminal first.
Remove the engine cover.
Disconnect the alternator connector (A) and cable (B) from the 'B' terminal.

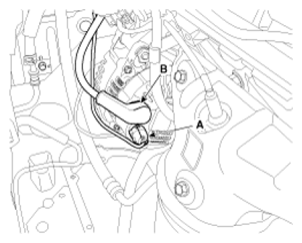

Fig 1: Identifying Alternator Connector And Cable
Courtesy of KIA MOTORS AMERICA, INC.
To release the tension, turn the drive belt tensioner counterclockwise then remove the drive belt (A).

Fig 2: Removing Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the A/C compressor. Refer to REPAIR PROCEDURES .
Remove the alternator (A).
Tightening torque :

26.5 ~ 33.3 N.m (2.7 ~ 3.4 kgf.m, 19.5 ~ 24.6 lb-ft)

Fig 3: Identifying Alternator
Courtesy of KIA MOTORS AMERICA, INC.
Installation is reverse order of removal.
Reconnecting the negative battery terminal last.
