Repair procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the (-) terminal from the battery.
Lift up the vehicle.
Remove the front muffler. (Refer to "INTAKE AND EXHAUST SYSTEM " in EM group)
Remove the propeller shaft bolts (A-4ea).
Tightening torque :

49.0~68.6N.m (5.0~7.0kgf.m, 36.2~50.6lb-ft)

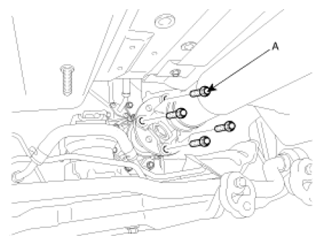

Fig 1: Identifying Propeller Shaft Bolts (A-4Ea)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the right driveshaft passenger side) from the transfer case. (Refer to "DRIVE SHAFT ASSEMBLY " in DS group)
CAUTION: Install the propeller shaft to be near runout marking (Transfer assembly 1ea, propeller shaft 1ea) each other.
Remove up and down mounting bolt (A, B) after removing the transfer case bracket mounting bolt (C).
[Gasoline 2.4]

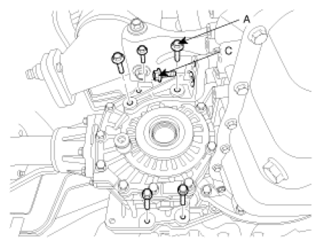

Fig 2: Identifying Transfer Case Bracket Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

[Gasoline 3.5]

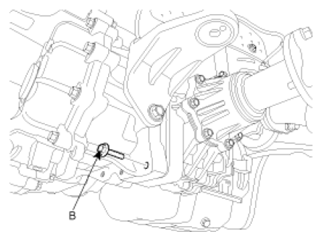

Fig 3: Identifying Transfer Case Bracket Up And Down Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

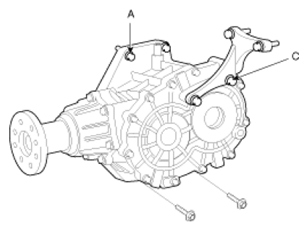

Fig 4: Identifying Transfer Case Bracket Up And Down Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the transfer case with pry-bar after supporting the transfer case with a jack.
