Transfer Oil Inspection

Transfer oil should be inspected and refilled every 30 months or 37, 500 miles.

Tightening torque

Oil drain plug (A) :

39.2~58.8N.m (4.0~6.0kgf.m, 28.9~43.4lb-ft)

Filler pulg(B) :

39.2~58.8N.m (4.0~6.0kgf.m, 28.9~43.4lb-ft)

[Gasoline 2.4]

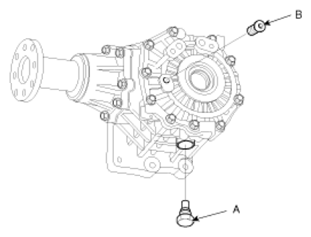

Fig 1: Identifying Oil Drain Plug

Courtesy of KIA MOTORS AMERICA, INC.

[Gasoline 3.5]

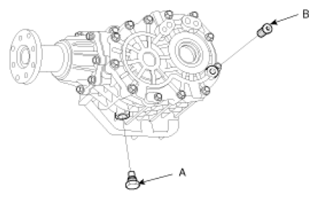

Fig 2: Identifying Filler Plug

Courtesy of KIA MOTORS AMERICA, INC.
