Inspect Spark Plug

1. Disconnect the ignition connectors (A).

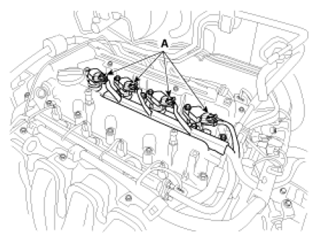

   Fig 1: Identifying Ignition Coil Connectors

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the ignition coils (A).
   Fig 2: Identifying Ignition Coils

   Courtesy of KIA MOTORS AMERICA, INC.
3. Using a spark plug socket, remove the spark plug.
   CAUTION: Be careful that no contaminates enter through the spark plug holes.
4. Inspect the electrodes (A) and ceramic insulator (B).
   Fig 3: Identifying Electrodes And Ceramic Insulator

   Courtesy of KIA MOTORS AMERICA, INC.

   Inspection Of Electrodes

   INSPECTION REFERENCE CHART



   Condition	Dark deposits	White deposits
   Description	Fuel mixture too rich Low air intake	Fuel mixture too lean Advanced ignition timing Insufficient plug tightening torque

5. Check the electrode gap (A).

Standard

Unleaded : 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.)

Fig 4: Checking Electrode Gap

Courtesy of KIA MOTORS AMERICA, INC.
