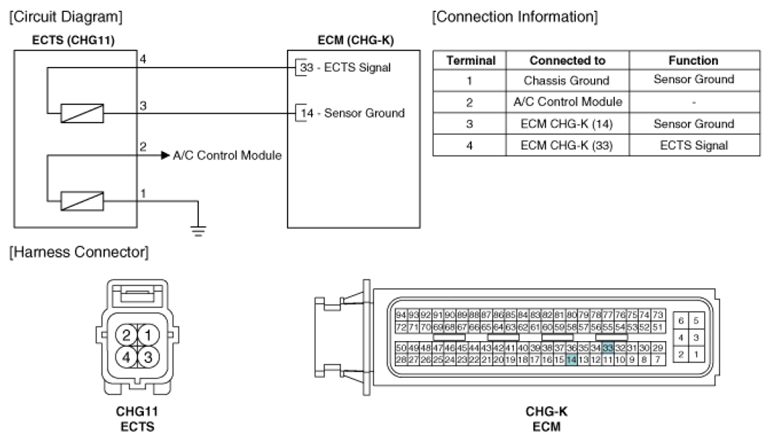

Home >> Kia >> 2011 >> Sorento Base, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Engine Coolant Temperature Sensor (ECTS) >> Schematic Diagrams >> Circuit Diagram
