Switch Diagnosis

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
  2. Select the vehicle model and then SMART KEY system.

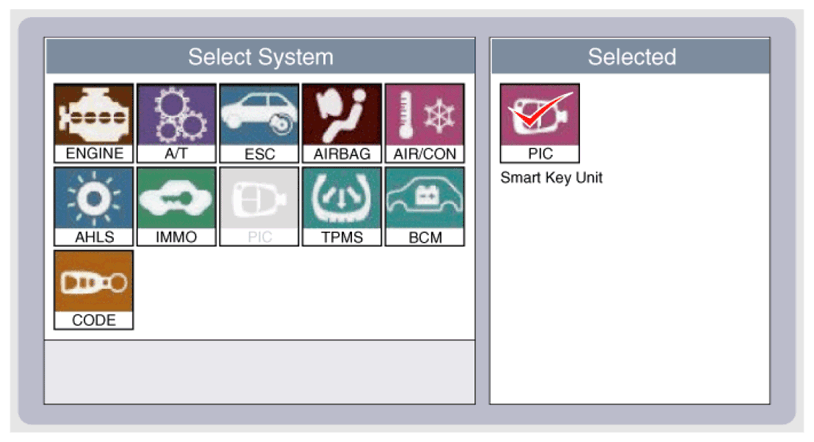

    Fig 1: Scantool Display - SMART KEY System
    G07415713Courtesy of KIA MOTORS AMERICA, INC.
  3. Select the "SMART KEY unit".
  4. After IG ON, select the "Current data".

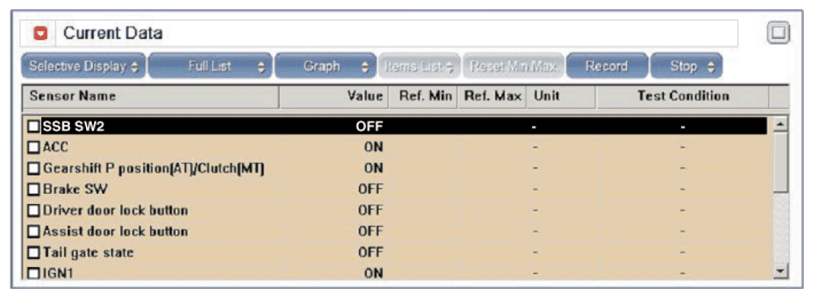

    Fig 2: Scantool Display - Current Data
    G07415714Courtesy of KIA MOTORS AMERICA, INC.
  5. You can see the situation of each switch on scanner after connecting the "current data" process.
    DISPLAY DESCRIPTION CHART

    Display Description
    FL Toggle SW ON : Push button is ON in the driver door handle.
    FR Toggle SW ON : Push button is ON in the assist door handle.
    Trunk SW ON : Trunk button is ON.
    Gear P Position ON : Shift lever is P position.
    IGN 1 ON : IGN switch is IG position.
    ACC ON : IGN switch is ACC position.
    Push Knob SW ON : Push knob switch is ON.
    External Buzzer ON : Buzzer is ON.
